Hard Tail Evo 8-speed

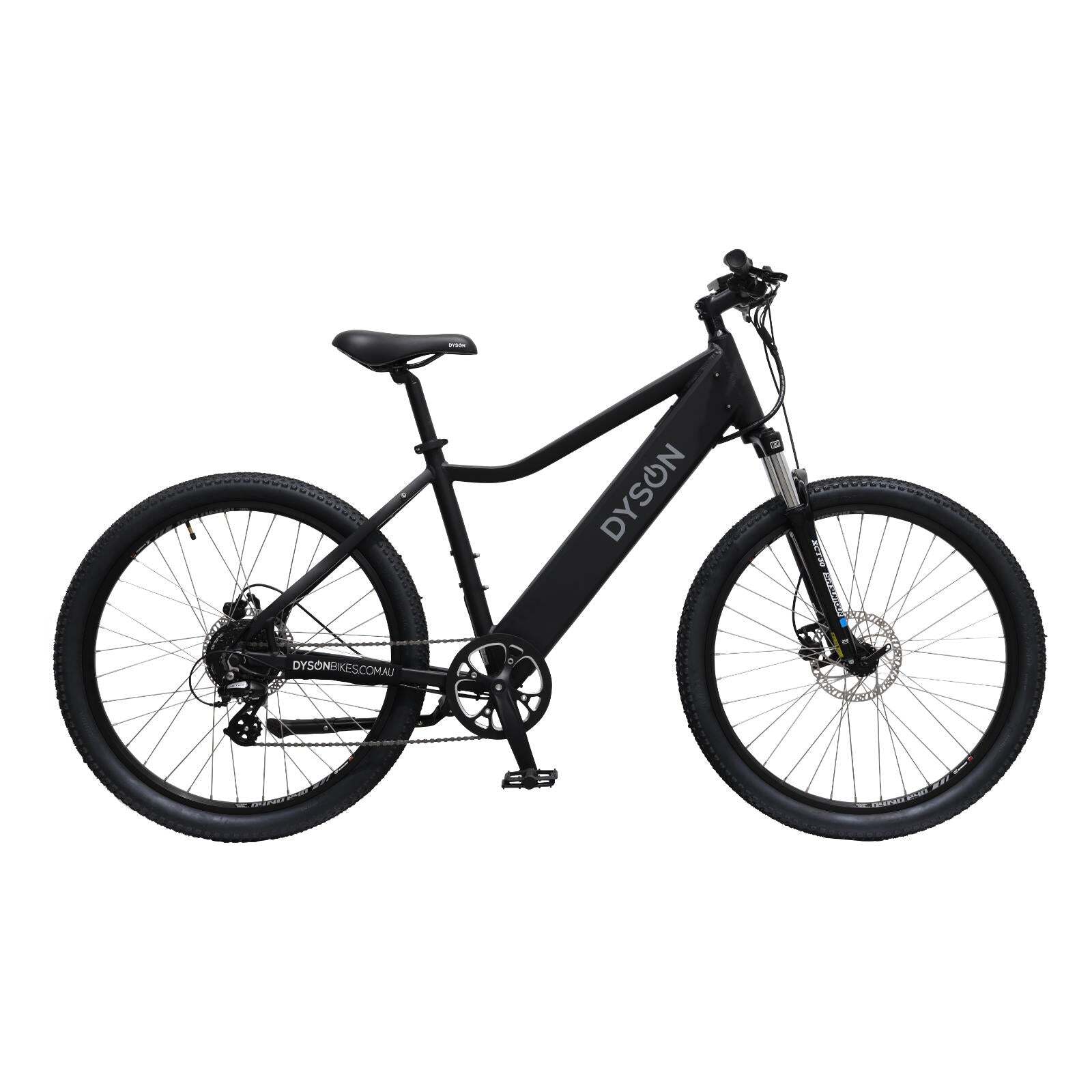

8-SPEED HARD TAIL EVO
The Dyson Hard Tail Evo alloy frames are extremely solid, well balanced and offer optimised ride geometry for comfort and safety on long and short trips alike.
The Mixte’s frame is slightly shorter than that of the Hard Tail Evo and the Mixte also has a step-through frame design, making it easier to get on and off the bike. As a rule of thumb, riders up to around 5’8” may find the Mixte frame more suitable, while riders above 5’8” might wish to opt for the Hard Tail Evo.
The frame design aside, both bikes share identical components and offer a choice of 14Ah or 17.5Ah batteries. Most of the cabling is hidden and the battery forms a part of the frame, making these bike look very much like traditional mountain bikes.
Quality components. It is easy to make a bike cheaper by using cheaper components and smaller capacity batteries, but we prefer spend a little more to make something that will last and be reliable. We use Tektro brake components, stainless steel spokes, lock-on grips, sensitive motor controller's filled with resin to prevent moisture entry, Shimano gear sets and quality bearings to name just a few examples.
Designed in Australia for Australians. With feedback from thousands of customers since 2013 we have tailored our bikes to meet the needs of Australian's. This translates to a comfortable riding position, smooth consistant assistance from our unique LPC motor and control systems. We support our products through a National Dealer Network from Broome to Yeppon and we are here to support our products from our base in Melbourne. We are happy to speak with you feel free to give us a call 03 9532 3132 - no chat bots here!
FEATURES
- The battery is the powerplant of any e-bike. We use high quality fully protected Lithium-Ion batteries in our Mixte bikes and you have a choice of either 14 Amp Hour or 17.5 Amp Hour capacities. The 14 Ah battery should give you around 70-80km range and the 17.5 Ah can provide over 100km.
- Our tried and tested motors are reliable, super-quiet and have the grunt to move you and your gear. While complying with all Australian legal road use requirements, their high torque performance ensures fast acceleration and smooth hill climbing. The motors are fitted with a 8-Speed Shimano cassette for slick and snappy gear changes with efficient power transmission. They are maintenance-free and fully sealed, requiring no user service.
-Linear Power Control, (LPC) for smooth, consistent power. With Dyson Bikes unique LPC design the power output of the bike remains consistant in level 1-5 regardless of the of battery voltage and meets the requirements of Australian Standard AS 15194:2016, (EN15194:2009, MOD).
- Safety features are extremely important and you can be assured of confident and controlled stopping power with our disc brakes with large 180mm rotors. The premium brake levers also have integrated power cut-outs to immediately turn off motor power once a brake has been applied.
- Our upright riding position and higher and wider handlebars provide you with an extremely comfortable ride, even when tackling longer distances. This increases rider alertness and awareness and also makes for a safer and more responsive ride experience. A properly designed ergonomic ride position also reduces aches and pains, increasing ride enjoyment.
- The electronic control system is precision engineered and designed for performance, reliability and easy operation. You simply select the amount of motor assistance from 0 to 6 and pedal - it's that simple. The control system will automatically apply the right amount of power to the motor. Once you stop pedaling or apply brakes, the motor assistance stops automatically. If you can ride a bike, you can ride a Dyson Bikes e-bike.
TECHNICAL SPECIFICATIONS:
BATTERY - Lithium-Ion / 14 Ah OR 17.5 Ah / 36V Nominal / 504Wh OR 630 Wh / Fully protected / Lockable
RANGE – 14Ah Battery = approx 70-80km – 17.5Ah = approx 100+ km - Dependent on assistance level and riding conditions
MOTOR - High-torque / 250W Nominal / Hub-Mounted / Maintenance-Free
ASSIST FUNCTION - Pedal Assist
DISPLAY FUNCTIONS - Backlit LCD / Water resistant / USB charge output / 6 Selectable motor assist levels / Battery level indicator / Speed / Trip functions
DRIVETRAIN - 8-Speed Shimano Altus / Shimano Cassette 12-32T / Single 46T Front Chainring
CADENCE SENSOR - Enclosed / Fast-Response / High-Precision
BRAKES - Hydraulic Tektro Mechanism / 180mm Rotors / Alloy levers / Auto power cut-off
FORK - Suntour XCM 30 Suspension / 100mm travel / Adjustable / Lock out
WHEELS - Weimann Dyno E40 27.5” (650B) alloy rims / Pillar stainless steel spokes
TYRES - Kenda 27.5 x 2.1" / Anti-puncture Slime tyre sealant / Low rolling resistance
PEDALS - VP Platform / Integrated reflectors
HANDLEBARS - Alloy swept 680mm / 70mm alloy stem
SEAT - Comfort Gel / 31.6 x 400mm Alloy seatpost / Quick release clamp
FENDERS – N/A
LIGHTS – Accessory, we suggest the Australian designed Knog range
RACK – N/A
KICK STAND - Heavy-duty alloy / Centre mount
CHARGER - AU Standards C-Tick approved / 3 Amp / 6-8h Charge time from empty
COLOUR – Matt Black
ADDITIONAL - Fabric Cageless drink bottle studs as standard - ETook Bike Lock mounting studs as standard
SEAT HEIGHT - Approx. - Low: 85cm - High: 110cm.
ACCESSORIES:
We also stock a range of high-quality accessories, from locks and lights to panniers, car carriers and beyond.
AFTERCARE:
All of our Dyson electric bikes carry a one year warranty, but by simply registering your bike, we will increase the warranty period to two years on electrical components and five years on the frame.
E-bikes require similar maintenance as traditional bikes – keep the drivetrain clean and lubricated, brakes in check and tyres inflated and regularly inspected. The electrical components need to maintenance – simply ensure is kept charged.
SHIPPING:
For most destinations the shipping cost is $99 per bike. You may also contact us to discuss your option prior to placing your order. For detailed shipping information, please see: Shipping & Returns
ANYTHING ELSE?
We've compiled a list of FAQ's, however, if you have any other questions please feel free to contact us.
Ready to buy? Simply press 'Add to Cart' above! We also have a national dealer network so you're certain to find a store near you - take a look at our DEALER LOCATOR page.
We also welcome you to come and try any of our range of electric bikes at our head office in Moorabbin in Melbourne’s South East, call us on 03 9532 3132 to book a suitable time.
REVIEWS
"I'm so happy I waited for the Hard Tail Mixte RTC to be released last week. With the lower seat and smaller frame it is the perfect size for a senior lady like me.
"
"Having a bad knee and living in the hills of the Dandenongs the Dyson E bike has given me a new lease on life. I can't walk more than 1km without limping but I can ride for over 20kms with no pain. Living in a hilly environment was impossible for me to ride a standard Mountain bike, not with the E-bike, rode down the Mountain into Ferntree Gully the other day and made it home without needing to get off the bike, except for a coffee at the local cafes." Carmen B.
"Very happy with my Hard Tail Mixte from Bicycle Centre Bendigo and the service and advice from the owner Brad! He fitted me to the right bike for my size and needs for which I am grateful! I originally wanted the Adventure folding bike but after riding it, and both the Evo and Mixte, we both agreed that the Mixte suited me best! My “virgin” ride this morning was very successful with the headwinds being no problem due to the excellent pedal assist! Also love the fact that Dyson is an Australian company sourcing quality parts to make a quality product at a good price! Very happy so keep up the good work!" Greg G.
| SKU | 101611 |
| Barcode # | 697777415436 |
| Brand | Dyson Bikes |
| Shipping Weight | 30.0000kg |
| Battery Size | 14Ah |
